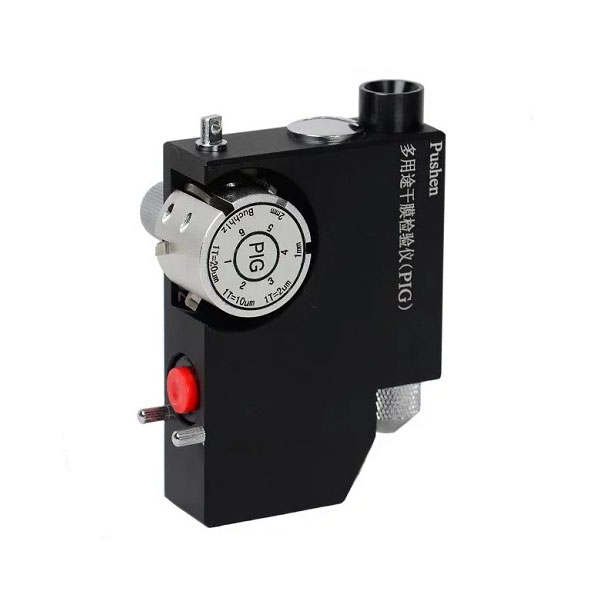

Paint Inspection Gauge
The biggest feature of this instrument is that it can test the coating thickness on non-llic substrates, such as wood, plastic, etc.Testing principle: The coating is scratched onto the substrate at a fixed angle, and the thickness of the coating is calculated d on the triangular projection of the cutting surface. According to the same principle, the thickness of each of multi- coating can also be calculated.
Standard
GB/T 13452.2
ISO 2409，2815
ASTM D 3359
DIN 50986，53153
Technical Parameter
Cutting tools | Purpose | Knife Specifications | Measuring Range |
NO.1 | Measure Film Thickness | 45°Chamfer | 0-2000μm |
NO.2 | Measure Film Thickness | 26.6°Chamfer | 0-1000μm |
NO.3 | Measure Film Thickness | 5.7°Chamfer | 0-200μm |
NO.4 | Scratching Test | 1mmSpacing | 0-60μm |
NO.5 | Scratching Test | 2mmSpacing | 60-120μm |
NO.6 | Indentation Test | 15mmSpacing | 59-129level |
Order Number
PS 2632 | Paint Inspection Gauge |
Paint Inspection Gauge
Paint Inspection Gauge, cutting tools 1 to 6, 1 load weight, 1 marking pen, 2 screwdrivers, user manual
